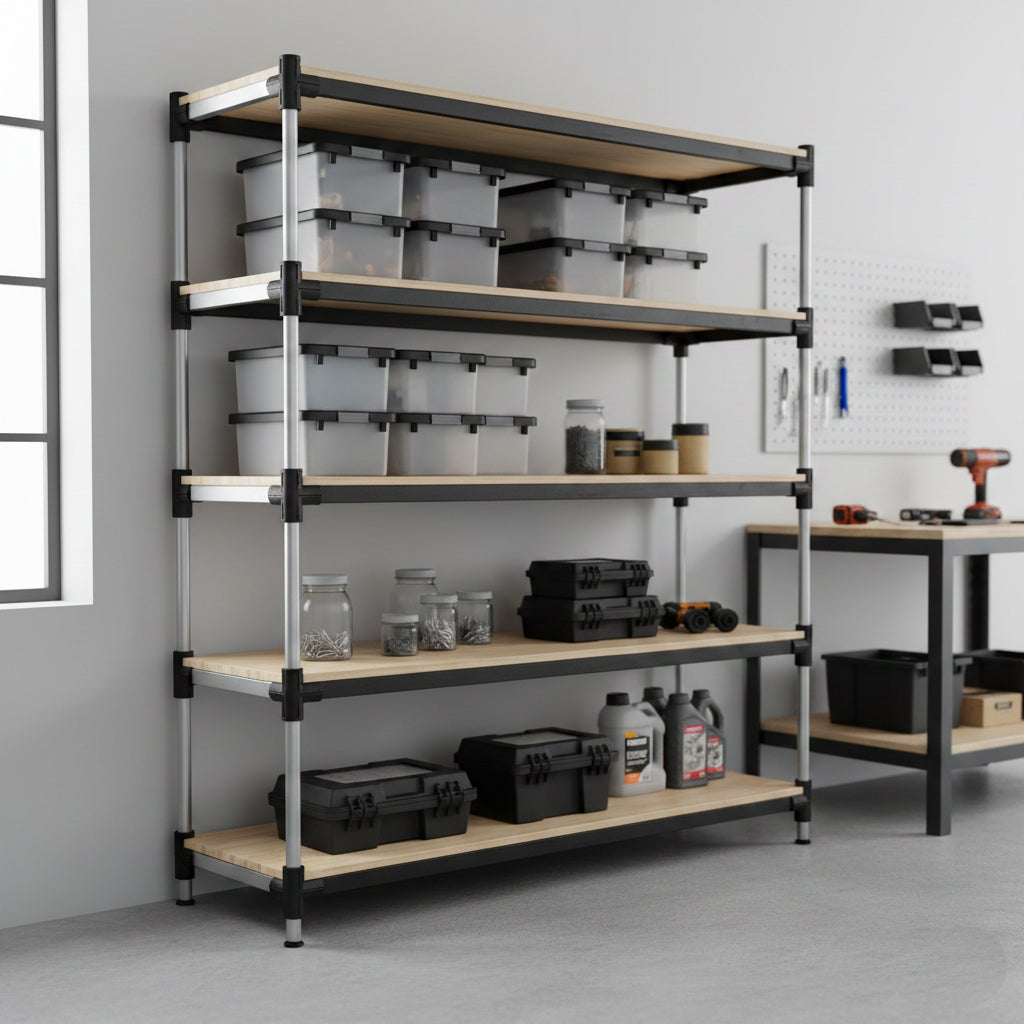

How to Build Custom Modular Shelving: The Ultimate DIY Guide Without Welding
Finding the perfect shelving unit can feel like an impossible task. Pre-built options rarely match the exact dimensions of your space, and commissioning bespoke metal fabrication is incredibly expensive. If you are looking to maximise your storage potential with a custom solution, building your own modular shelving system is the answer. The secret to achieving a professional, sturdy build without the headache of welding or threading? High-quality, push-fit tube connectors.
Why Choose Push-Fit Connectors for Shelving? When designing a storage rack, closet organizer, or retail display, you need structural integrity paired with simplicity. Heavy-duty plastic corner joints offer several distinct advantages over traditional construction methods:
-
Total Design Freedom: You aren't locked into fixed, standard dimensions. Whether you are working with aluminium, steel, or plastic tubing, you can cut your pipes to the exact millimeter to fit your alcove or garage perfectly.
-
No Specialist Tools Required: Forget the welding equipment, complex threading tools, and messy adhesives. A precision-engineered 3-way corner joint or a 4-way plastic joint allows for simple, rapid push-fit assembly. You can also use a screw to fix our connectors into place for additional strength.
-
Cost-Effective Durability: Manufactured to snug tolerances right here in the UK, these specialised connectors offer industrial-strength load-bearing capabilities at a fraction of the cost of bespoke metal framing systems.
Essential Parts for Your Modular Build To construct a basic, sturdy rectangular shelving frame, you will typically need a few core components:
-
Square or Round Tubing: Measured and cut to your required height, width, and depth.
-
3-Way Corner Connectors: Used for the eight outer corners of your shelving unit, creating perfect 90-degree angles where three planes meet to form a cube.
-
4-Way Connectors or T-Joints: Essential if you are adding middle support tiers, extra shelves, or extending the unit horizontally.
Building Your Frame: Step-by-Step
-
Plan and Measure: Sketch out your ideal shelving unit. Calculate the exact length of the horizontal beams and vertical posts, remembering to factor in the small amount of space the connectors themselves will occupy.
-
Cut Your Tubes: Use a standard pipe cutter or hacksaw to carefully cut your tubing to size. Ensure the cuts are perfectly straight to guarantee a flush, secure fit inside the connector.
-
Assemble the Base: Start by connecting your bottom horizontal tubes using your chosen 3-way corner joints. Apply firm pressure to ensure the push-fit mechanism is fully and tightly engaged.
-
Add the Uprights: Insert your vertical pipes into the upward-facing slots of your base connectors.
-
Build the Tiers: Slide your T-joints or 4-way connectors down the upright posts to your desired shelf heights, then attach the horizontal support beams.
-
Cap it Off: Finish the very top of the frame by securing the final 3-way corner joints.
Start Your Project Today
Ready to reclaim your space and build exactly what you need? At Joints & Connectors, we manufacture precision-fit joints for both round pipe and square tube entirely in-house. Browse our comprehensive range of heavy-duty connectors and start planning your custom shelving unit today.
