5-Way | Plastic Box Section Connector | 10mm to 40mm

5-Way 90-Degree Connectors for Square Box Section Frame Extensions & Grids

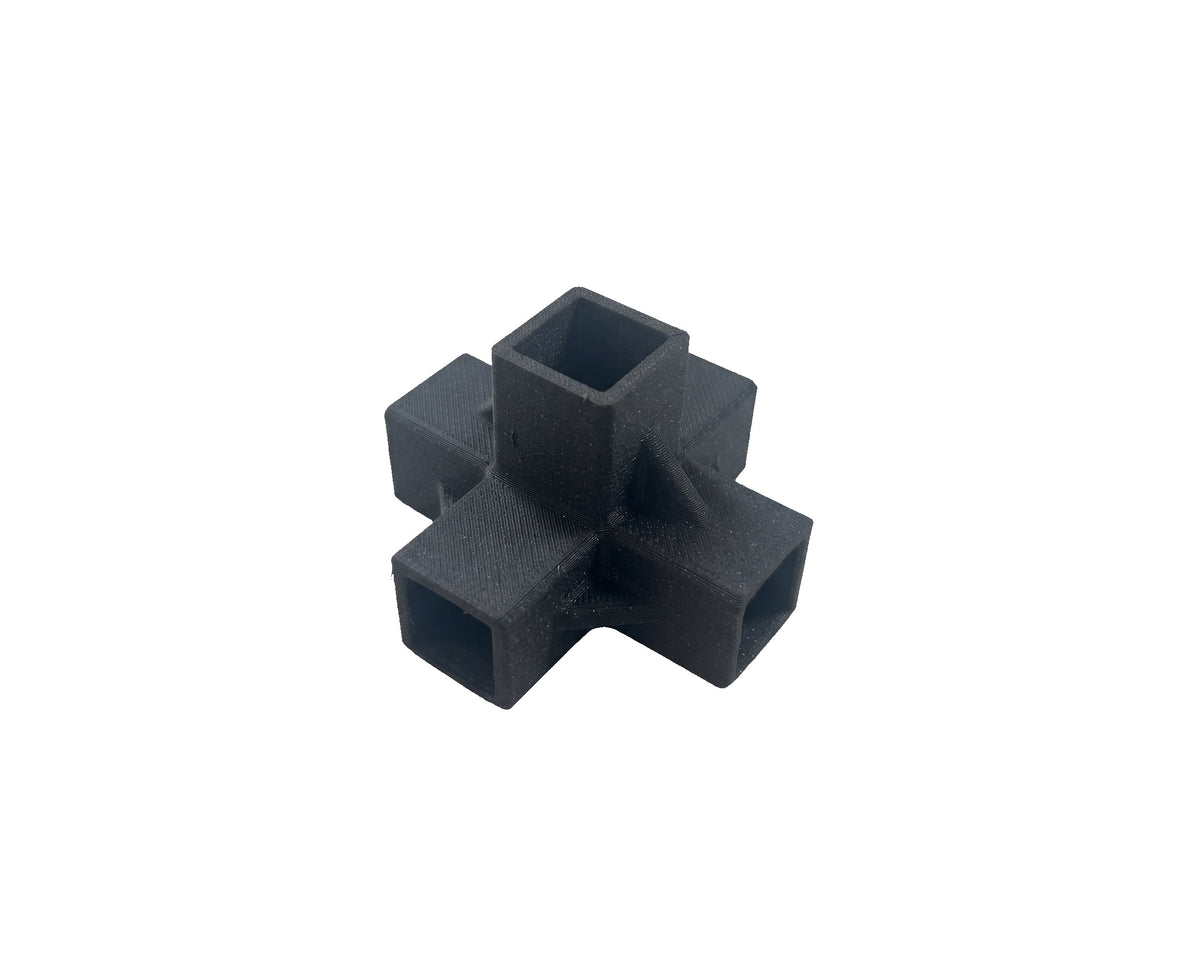

This robust, universal plastic 5-Way Connector (1 or 2 pack) is the essential fitting for quickly establishing secure, multi-directional 90-degree connections across three axes for your square tube and box section structures.

Snug fit: We automatically factor in a small tolerance so please purchase the bracket/joint that exactly matches the size of the tube (A) you need this joint to fit. We will do the rest.

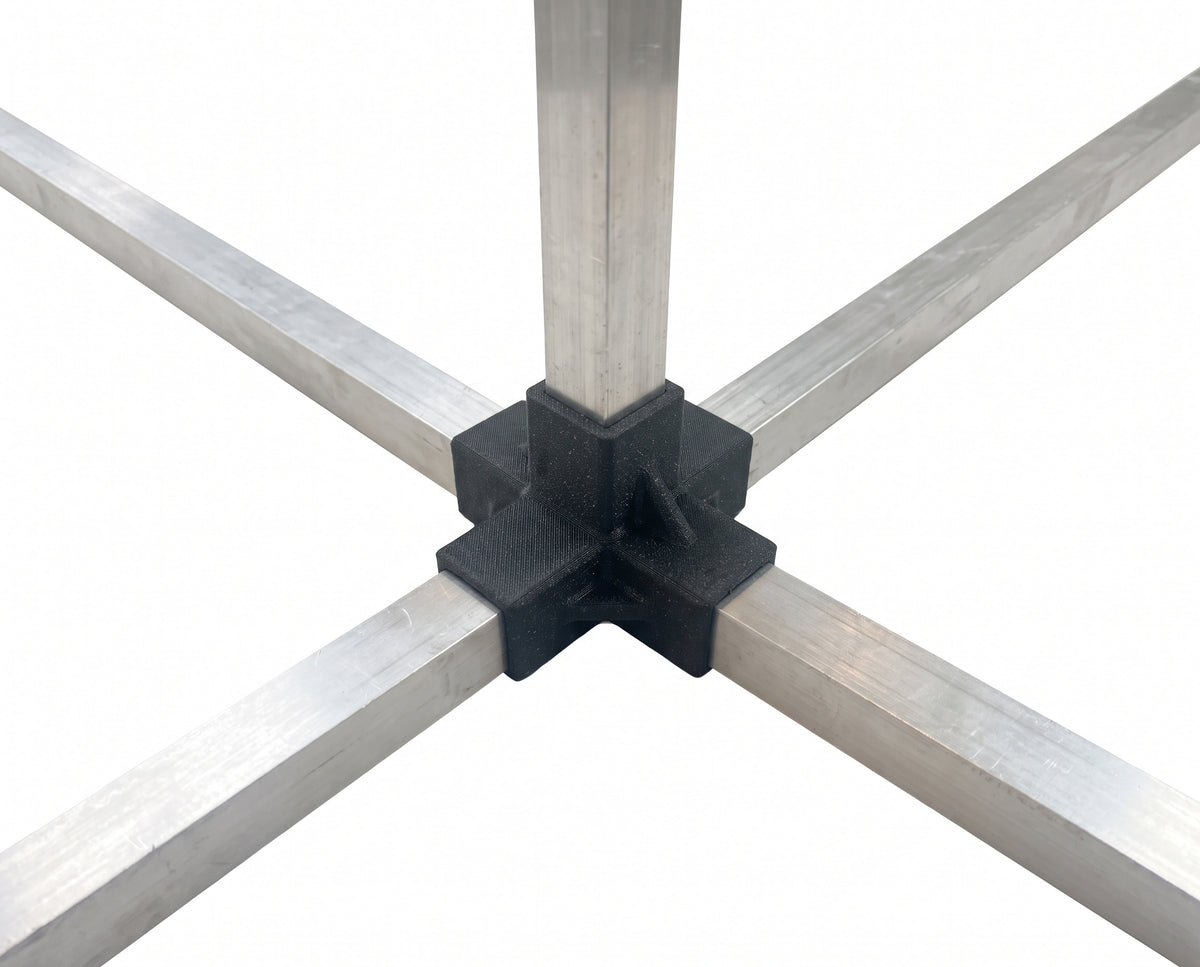

This specialised connector is utilised to unite five square profiles to form a central structural hub or a complex, multi-tiered intersection. It's perfectly suited for creating the strong, reliable multi-axis joints required for intricate structural framing, multi-level shelving units, complex enclosures, and three-dimensional display stands, working excellently with aluminium, metal, or plastic square box section.

Engineered for a wide range of popular metric and imperial box section sizes from 10mm to 40mm, this is the dependable, heavy-duty connector you require for both professional fabrication and demanding DIY projects. Need a size not listed? Contact us - we're here to help.

When your project needs to extend into three dimensions with central load-bearing supports, these 5-way joints allow for limitless expansion. They are widely used as central node connectors for workshop frame systems where multi-tiered racking needs maximum stability.

• Complex Projects: Ideal for intricate multi-directional frame projects (like custom cages, workstations, or 3D grids).

• Retail Extensions: Use these to build central hubs for retail display frames to create highly stable, multi-level tiered displays.

Multi-Axis Joint Reliability and Secure Square Fit

This 5-way connector is a specialised component, precisely designed to form a reliable structural node where five square box sections meet. It is expertly manufactured using Thermoplastic Polyester and significantly fortified with glass fibre. This advanced composite material delivers the crucial strength and stability needed for reliable, load-bearing structures:

• Robust Support: Specifically designed to rigidly clamp five intersecting square tubes at precise 90-degree angles across multiple planes, ensuring the final central hub remains exceptionally stable under multi-directional stress.

• Secure Grip: Shaped to create a tight, flush fit on the square profile, locking all five members securely and preventing unwanted twisting or movement in the final three-dimensional structure.

• High Resilience: It offers superb resistance to chemicals and heat, guaranteeing long-lasting, durable performance in diverse locations like outdoor applications, commercial spaces, and industrial workshops.

Product Features & Specifications

Applications: Create Supports, Partitions, and Multi-Tier Frames

This 5-way corner connector is the perfect solution for any build requiring a reliable, rigid multi-axis intersection. Use it to quickly and easily construct:

• Multi-Tier Shelving Units and heavy-duty storage racks with central vertical supports.

• 3D Box Frames and Enclosures for large machinery or expansive modular displays.

• Complex Cubicles and grid-style room dividers.

• Freestanding Structural Hubs for large-scale temporary or permanent installations.

Delivery time is typically 2-3 days from order and then shipment. We will supply sooner where possible.
